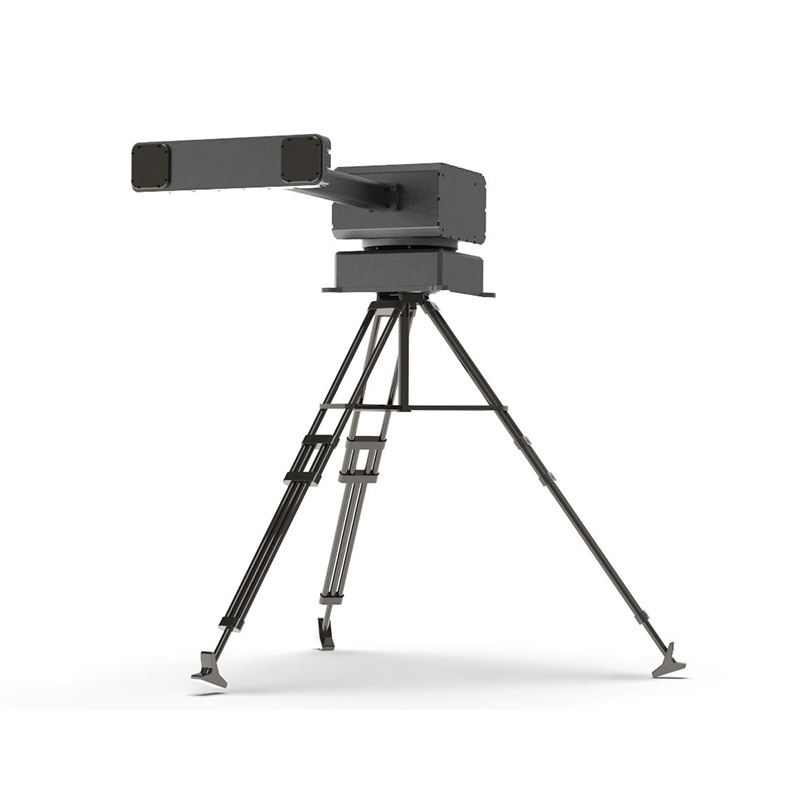

This is an ARCSAR technology-based slope deformation monitoring radar with a horizontal scanning range of 360°. It can be used for long-distance, large-scale and high-precision non-contact slope deformation measurement. It is widely applied in open-pit mine stopes, open-pit mine dumps, geological disaster monitoring and other fields, as well as the early warning of landslide disasters.
All-round monitoring: ARCSAR technology, 360° all-round measurement
High integration: integrated structure, IP66 protection
Portability: weight of a single module: ≤ 25 kg; maximum side length: ≤ 1.5 m
High adaptability: normal operation in alpine areas, high altitude, high humidity and heat, and rainstorm/snowstorm conditions
High degree of intelligence: system self-diagnosis and repairment, equipment status monitoring and reporting, etc.
All-weather and all-day: 24-h continuous monitoring, adaptive to various climatic conditions
Non-contact: involving no construction in risk areas
Surface monitoring: millions of monitoring data points can be obtained from each displacement image
Intelligent algorithm: automatically removes external environmental interference
Suitable for the integration of multiple sensors (cameras, weather stations, etc.) and radar network monitoring
| Target type | Bare surface |
| Distance | ≥5km |
| Deformation accuracy | ≤0.1mm |
| Resolution | 0.25m（R) x 5.2mrad/0.3°(A) |
| Monitoring range（Horizontal） | 360° |
| Monitoring range（Vertical） | 60° |
| Size | Scanning radius ≤1.2m,maximum side length ≤1.5m |
| Weight | Radar is ≤ 48kg,and the weight of single module is ≤ 25kg |
| Scan time | A circle ≤ 1min |
| Data update rate | 30s/90° |
| Power consumption | ≤ 48W |
| Operating temperature | -40℃~60℃ |
| Protection level | IP66 |
